707-01-0J770 PC1250sp-8 Bucket hydraulic cylinder

707-01-0J770 PC1250sp-8 Bucket hydraulic cylinder

707-01-0J770

PC1250sp-8 Bucket hydraulic cylinder

cylinder assembly komatsu

  • Item NO.:

    pc1250sp-8
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    yellow
  • Shipping Port:

    Xiamen port
  • Lead Time:

    3 to 5 days
Product Details

707-01-0J770    L  H

707-01-0J780  RH

PC1250sp-8 Bucket hydraulic cylinder

cylinder assembly komatsu

for backhoe  excavator 3.4m  arm machine





net weight:  457  kg

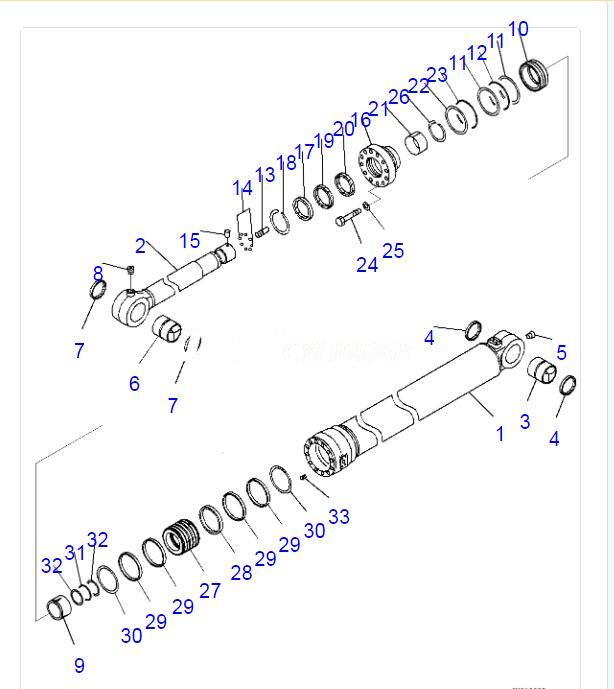

Part No Parts name Comments
  707-01-0J772     Cylinder Assembly Komatsu 457 kg.
  ["SN: 30247-UP"] analogs:["707010J770"] |$0.
  707-01-0J770     Cylinder Assembly Komatsu 457 kg.
  ["SN: 30158-30246"] analogs:["707010J772"] |$1.
  721-13-16140     Cylinder Komatsu 0.000 kg.
  ["SN: 30158-UP"]
  707-58-11790     Rod, Piston Komatsu 236 kg.
  ["SN: 30158-UP"]
  707-76-10130     Bushing Komatsu China 2.03 kg.
  ["SN: 30158-UP"]
  07145-00100     Seal, Dust, (Kit : K09, K10) Komatsu China 0.046 kg.
  ["SN: 30158-UP"]
  07043-00108     Plug, Taper Komatsu 0.005 kg.
  ["SN: 30158-UP"] analogs:["0704320108", "0704350108", "820510607", "YM23871010000", "R0704300108"]
  707-76-10140     Bushing Komatsu China 2 kg.
  ["SN: 30158-UP"]
  208-70-12231     Seal, Dust, (Kit : K09, K10) Komatsu OEM 0.06 kg.
  ["SN: 30158-UP"]
  707-71-71210     Plunger Komatsu 0.000 kg.
  ["SN: 30158-UP"]
  707-71-35050     Collar Komatsu 0.000 kg.
  ["SN: 30158-UP"]
  707-35-91640     Ring, Back-up, (Kit : K09, K10) Komatsu China 0.01 kg.
  ["SN: 30158-UP"]
  07000-15150     O-ring, (Kit : K09, K10) Komatsu OEM 0.016 kg.
  ["SN: 30158-UP"] analogs:["0700005150"]
  707-71-70850     Plunger Komatsu China
  ["SN: 30158-UP"]
  04260-00635     Ball, Steel Komatsu 0.012 kg.
  ["SN: 30158-UP"] analogs:["805750022", "YM24190080001", "21D0986810"]
  707-71-91270     Cap Komatsu 0.001 kg.
  ["SN: 30158-UP"]
  707-27-16970     Head, Cylinder Komatsu 13 kg.
  ["SN: 30158-UP"]
  707-56-11840     Seal, Dust, (Kit : K09, K10) Komatsu 0.000 kg.
  ["SN: 30158-UP"]
  707-75-11512     Ring, Snap Komatsu 0.03 kg.
  ["SN: 30158-UP"]
  707-51-11890     Packing, Rod, (Kit : K10) Komatsu China
  ["SN: 30247-UP"]
  707-51-11050     Packing, Rod, (Kit : K09) Komatsu 0.122 kg.
  ["SN: 30158-30246"]
  707-51-11690     Ring, Buffer, (Kit : K09, K10) Komatsu 0.022 kg.
  ["SN: 30158-UP"]
  707-52-11631     Bushing Komatsu 0.322 kg.
  ["SN: 30158-UP"] analogs:["7075211630"]
  01010-82090     Bolt Komatsu 0.286 kg.
  ["SN: 30158-UP"] analogs:["0101062090", "0101032090"]
  707-88-75310     Washer Komatsu 0.022 kg.
  ["SN: 30158-UP"]
  707-75-10512     Ring, Snap Komatsu 0.01 kg.
  ["SN: 30158-UP"]
  707-36-16720     Piston Komatsu 8 kg.
  ["SN: 30158-UP"]
  707-44-16150     Ring, Piston, (Kit : K09, K10) Komatsu 0.1 kg.
  ["SN: 30158-UP"]
  707-39-16120     Ring, Wear, (Kit : K09, K10) Komatsu OEM 0.072 kg.
  ["SN: 30158-UP"]
  707-44-16910     Ring Komatsu China 0.09 kg.
  ["SN: 30158-UP"]
  07000-B5105     O-ring, (Kit : K10) Komatsu China
  ["SN: 30247-UP"]
  07000-15105     O-ring, (Kit : K09) Komatsu China 0.01 kg.
  ["SN: 30158-30246"] analogs:["0700005105"]
  07001-05105     Ring, Back-up, (Kit : K09, K10) Komatsu 0.01 kg.
  ["SN: 30158-UP"]
  01310-01225     Screw Komatsu 0.02 kg.
  ["SN: 30158-UP"] analogs:["0131021225"]
